DLE 55


1850

קרא עוד


מנוע בנזין הצתה אלקורונית  DLE 55 סמ"ק לטיסנים

נתונים טכנים:





Specifications:

Stock Number: DLEG0055
Displacement: 55.6 cc (3.392 cu in)
Bore: 1.77 in (45 mm)
Stroke: 1.38 X in (35 mm)
Weight: 3.5 lb (1.59 kg)
RPM Range: 1,350-8,500
Output: 5.5 hp @ 7,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller

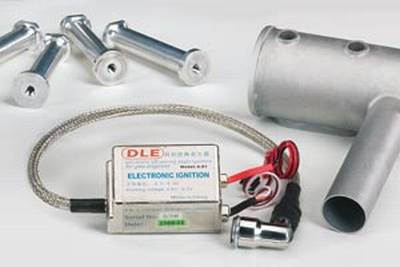

Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 22x8, 22x10, 23x8 & 23x10


Technical Data:
Manifold: 4-petal, V-type, reed-valve, bottom induction
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo or LiFe use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1
