DLE 20cc

  • מותג: DLE
  • מק"ט / ברקוד:: DLEG0020

קרא עוד

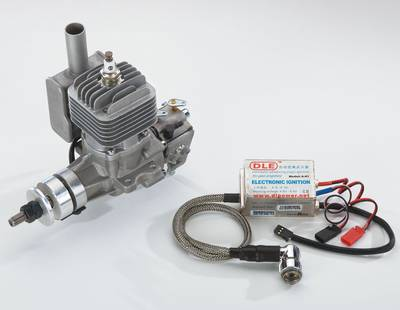

מנוע בנזין 20 סמ"ק תוצרת DLE בעל הצתה אלקטרונית

נתונים נוספים:

          Output Power: 2.5 HP at 9,000 RPM

          Idle Speed: 1,750 RPM

          Static Thrust: 6 kg Pulling Force/100 meters altitude , 5.3 kg Pulling Force/1,800 meters altitude

          Displacement: 1.22cu in (20cc)


          Bore and Stroke: 1.3 x 1.0" (32 x 25mm)

          Compression Ratio: 10.5:1

          Weight: Engine: 22.93oz.(650g)

           Exhaust: 1.76oz (50g)

           Ignition: 4.23oz (120g

            Total: 28.9oz (820g)

          Gasoline/Oil Mixture: 30:1

          Gasoline Octane Rating: 87-93

          Recommended Propellers: 14x10, 15x8, 16x6, 16x8, 17.6, 18x6

            (break-in prop not specified)

          Ignition Battery: 4.8 - 6V, BEC required if LiPo battery is used

          Spark Plug: CM6

          Spark Plug Gap: 0.018 - 0.020"

          Plug Installation Torque: 7 - 8ft-lbs

            Carburetor Adjustments;

          Low Speed Needle: 1.5 turns out as a starting point, adjust for a mooth idle and a reliable transition to high throttle


          High Speed Needle: 1.5-2 turns out from closed, adjust needle to pea   RPM, if engine slows or dies at full throttle, the high-
speed mixture is likely too lean

          Height from bottom/Crankcase to top of Cylinder Head: 5.4" (138mm)

          Height/bottom/of Mounting Tab to top of Cylinder Head: 3.4" (87.5mm)

          Width of Cylinder Head: 2.5" (65mm)

          Width at Mounting Tabs: 2.8" (70.5mm)

          Distance/Mounting Hole Centers Same Side: 1.0" (26mm)

          Distance/Mounting Hole Centers Opposite Side: 2.4" (60mm)

          Height of Exhaust Opening: 0.42" (10.8mm)

          Width of Exhaust Opening: 0.83" (21mm)

          Length from Carburetor to Front Bearing: 4.5" (114mm)

          Length from Carburetor to Prop Hub: 5.1" (130mm)

          Total Height of Muffler including Exhaust Pipe: 3.8" (96mm)

          Center of Muffler Exhaust Opening to end of Pipe: 2.4" (61mm)

          Muffler Width: 2" (52.1mm)

          Exhaust Pipe Inner Diameter: 0.56" (14.2mm)

          Crankshaft thread size: 8mm x 1mm
